WLN KD-C1

The KD-C1 is a highly portable, budget UHF HT for basic simplex and local repeater work. Its performance is solid given its price point, though programming requires some effort.

★★★★4.4(141 reviews)
Amazon's Choice
UHFCHIRP
WLN KD-C1
$14.99 on Amazon
Price updated 8/28/2026
$15–$15

Decision helper

Is this radio right for you?

Yes, if you're…

  • Budget-conscious new technicians
  • Backup radio for events or camping
  • Simplex communication needs
  • Operators needing portability

Skip it, if you're…

  • Advanced field deployment radios
  • Operators needing high-end features
  • Users expecting out-of-box functionality

Tradeoffs

The good and the bad

What we like

  • Very compact and lightweight design
  • Excellent value for the price point
  • Easy programming via CHIRP software
  • Adequate range for local repeaters

What we don't

  • Factory programmed with licensed frequencies
  • No visible display or channel lock feature
  • Requires external programming cable
  • Potential audio reception issues reported

Proprietary RR score

How we scored it

Value
95
Features
15
Beginner
86
Portability
55

Scores combine specs, Amazon buyer sentiment, and our testing framework. How we score →

Ready to buy?

Fast Prime shipping, no-questions-asked returns through Amazon.

5.00W

TX Power

1500mAh

Battery

16

Channels

198g

Weight

Extracted from the top buyer reviews we analysed

Themes from top buyer reviews

Portability and Size

Users praise its small, light, and compact build.

4.5

Programming Ease

CHIRP software makes frequency setup simple.

4.3

Out-of-Box Setup

Factory frequencies often require manual correction.

2.8

Performance vs Cost

Exceeds expectations for its low price tag.

4.1
★★★★4.4(141 Amazon reviews)
5 star
71%
4 star
15%
3 star
4%
2 star
3%
1 star
7%

Overview

This radio is aimed squarely at new Technicians needing a first HT on a tight budget, or experienced operators wanting a disposable backup for events, volunteer work, or situations where losing a radio is a real possibility. It is not a feature-rich rig, and it does not pretend to be. At this price point, the honest comparison is other budget UHF handhelds, not your Yaesu or Kenwood.

The KD-C1 covers UHF 400 to 470 MHz with up to 5W output, 16 memory channels, and a 1500mAh Li-ion pack rated for roughly eight hours on a 5-5-90 duty cycle. Portability scores well for its class given the compact 110x50x32mm footprint and 198g weight with battery. Receiver sensitivity is rated at 0.20 uV at 12dB SINAD, which is adequate for simplex and local repeater work. The 25kHz channel spacing covers most North American UHF repeater assignments without issue.

There is no verified IP rating, so treat the waterproofing claim with appropriate skepticism in the field. For a licensed operator needing a second HT for a net, an event, or a loaner radio for a new ham, the value case is reasonable. If you need APRS, DMR, cross-band capability, or a full memory bank, look elsewhere.

Specifications

Price
$14.99
TX Power (High)
5.00W
Memory Channels
16
Weight
198g
Battery
1500 mAh
FCC Authorization
Covers FRS only (Part 95B)
FCC ID
2AQX5KD-C1
FCC Rule Parts
Part 95B
FCC Grant Date
2020-11-30
size
96*55*22mm
color
Black
UPC
764210571612
Color
Black
Voltage
3.7 Volts
Impedance
50 Ohms
Tuner Type
UHF
Model Number
4350441575
Audible Noise
45 Decibels
Built-In Media

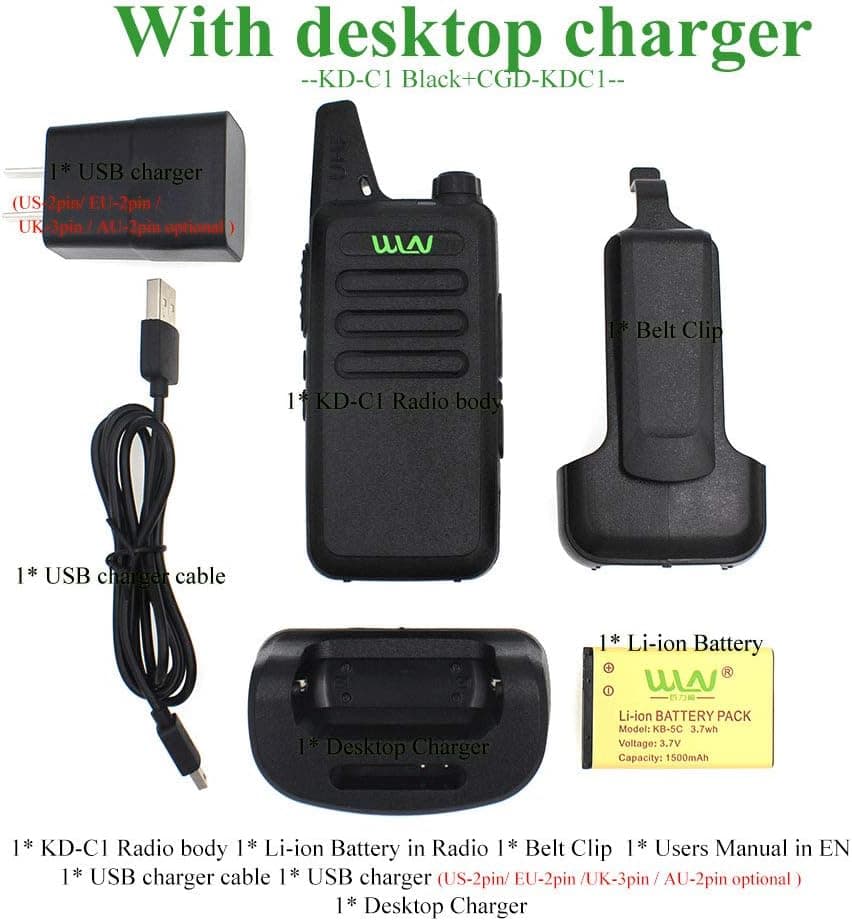

Two Way Radio, Battery, Belt Clip, Instructions
Frequency Range
400 470 mhz
Mfr Part Number
4350441575
Compatible Devices
FRS Two-Way Radios, FRS Compatible Headsets, FRS Compatible Earpieces
Additional Features
Uhf
Battery Average Life
8 Hours
Water Resistance Level
Waterproof
Item Dimensions D x W x H
1.97"D x 1.26"H

Key Features

  • UHF coverage spans 400 to 470 MHz; no VHF band included
  • Maximum TX output rated at 5W; intermediate and low power levels unlabeled in spec sheet
  • 16 memory channels only; adequate for simplex and a handful of local repeaters
  • 25kHz channel spacing standard; narrow 12.5kHz operation not confirmed in published specs
  • Receiver sensitivity rated at 0.20 uV (12dB SINAD); acceptable for local simplex and repeater use
  • 1500mAh Li-ion battery; manufacturer rates approximately 8 hours on light duty cycle
  • Compact form factor at 110x50x32mm and 198g with battery; no stated IP rating despite waterproof claims
